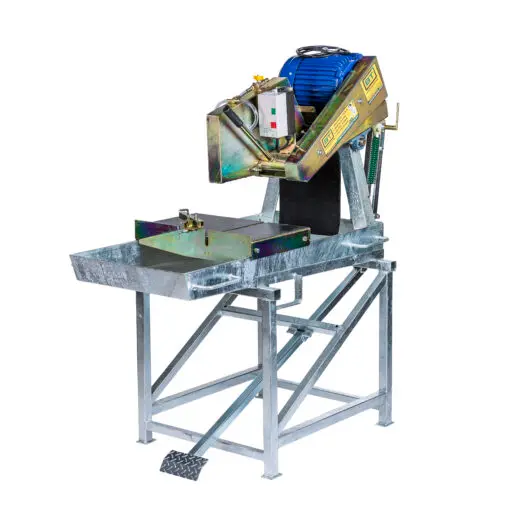

BT Electric Block Saw

BT Engineering have developed, engineered and manufactured the most rugged and hardworking 20″ Blocksaw in the market.

• Depth of cut: 200mm
• Length of cut: 540mm
• Fitted with 3Phase electrical plug

• The 20″ diamond blade with 8″ cutting clearance allows you to breeze through concrete blocks and other masonry products in one clean cut.
• Three phase electric motor provides the grunt you need in any location, even the most demanding work sites.
• The enlarged sliding carriage provides a completely stable platform for large scale blocks, pavers or bricks to rest on while being cut.
• Eliminate dust with the adjustable water supply valve.
• The removable mitre guide allows you to consistently cut concrete blocks, pavers and bricks to any length or shape you require.
• The detachable base provides neat transportation options on any Ute, truck or van.
• The galvanized stand and base combined with the zinc electroplated saw arm ensures the BT Blocksaw repels rust and corrosion throughout many years of operation.

Motor Specifications:

• Teco  4kw 3 phase electric motor
• Voltage : 415 (50hz)
• Current draw ( Amps)
  • Max ( Start Up) 22.65
  • Minimum  7.24
  • Normal  7.54
• Power Output 2200w

Blade & Cutting Specifications

• Blade size ( diameter ) 510mm / 20″
• Blade bore diameter  25.4mm / 1″
• Depth of cut: 200mm / 8″
• Length of cut: 540mm /21″

Carriage Dimensions

• Length: 360mm
• Width: 570mm

Blocksaw Dimensions

• Assembled
  • Length: 1450mm
  • Width: 700mm
  • Height: 1550mm
  • Weight: 150kg
• Packed for transportation
  • Length: 1450mm
  • Width: 700mm
  • Height: 1070mm
  • Weight: 150kg
