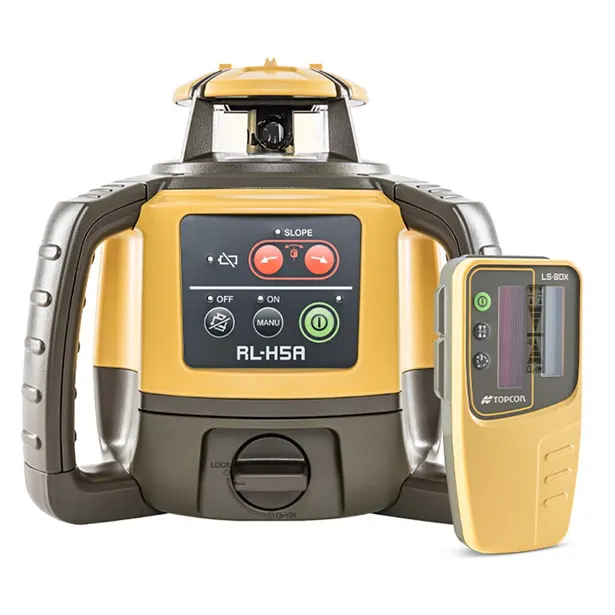

TOPCON RL-H5A Rotary Laser with Slope Rechargeable with Standard LS-80X Receiver

Engineered for a diverse range of applications, the RL-H5 series represents the latest evolution of rotating lasers from Topcon.

The RL-H5A is a next-generation self-leveling rotating laser that offers user-friendly operation, long-range precision, extended battery life, and reliable performance in all weather conditions.

Featuring electronic self-leveling, simply press the power button and start working within seconds. If the RL-H5A is disturbed during use, it automatically re-levels itself. The self-leveling motors provide accuracy of ±10 arc seconds. The RL-H5A is particularly effective for long-range tasks. Need to measure elevations up to 400m from your laser? No problem! This instrument has the capability and range to cover a job site with a diameter of 800m.

This rotating laser level offers the choice of 100 hours of continuous operation with D cell (4 x) batteries (included), or 60 hours with the optional rechargeable (Ni-MH) battery pack.

The RL-H5A is built to withstand tough job site conditions, and with its IP66 rating, it can endure dust, sudden showers, and even heavy rainfall. Topcon backs this dependable and precise laser with a 5-year warranty.

• Working Range 800m
• Accuracy ±1.5mm @ 30m
• Manual grade change to 5%
• Dust/Water Rating IP66
• LS-80X Hand Receiver
• Rechargeable NIMH Battery

Specifications

• Accuracy: H: ±10 arc seconds
• Self-Levelling Range: Horizontal ±5°
• Working Area: 800m
• Rotation Speed: 600 rpm
• Dust/Water Rating: IP66
• Operating Time: NIMH Rechargable (60 hours)
• Operating Temperature: -20°C to 50°C
• LS-80X Hand Receiver (±1 & ±2mm)
