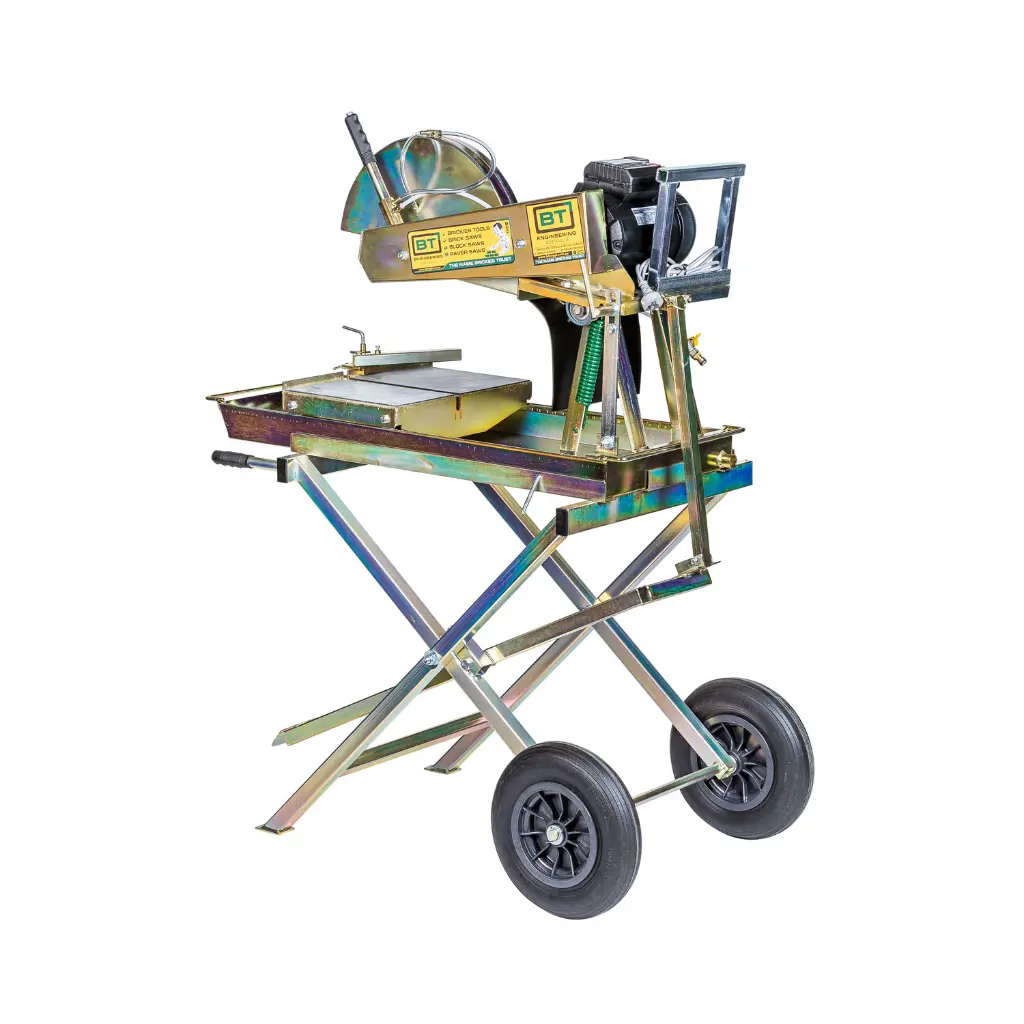

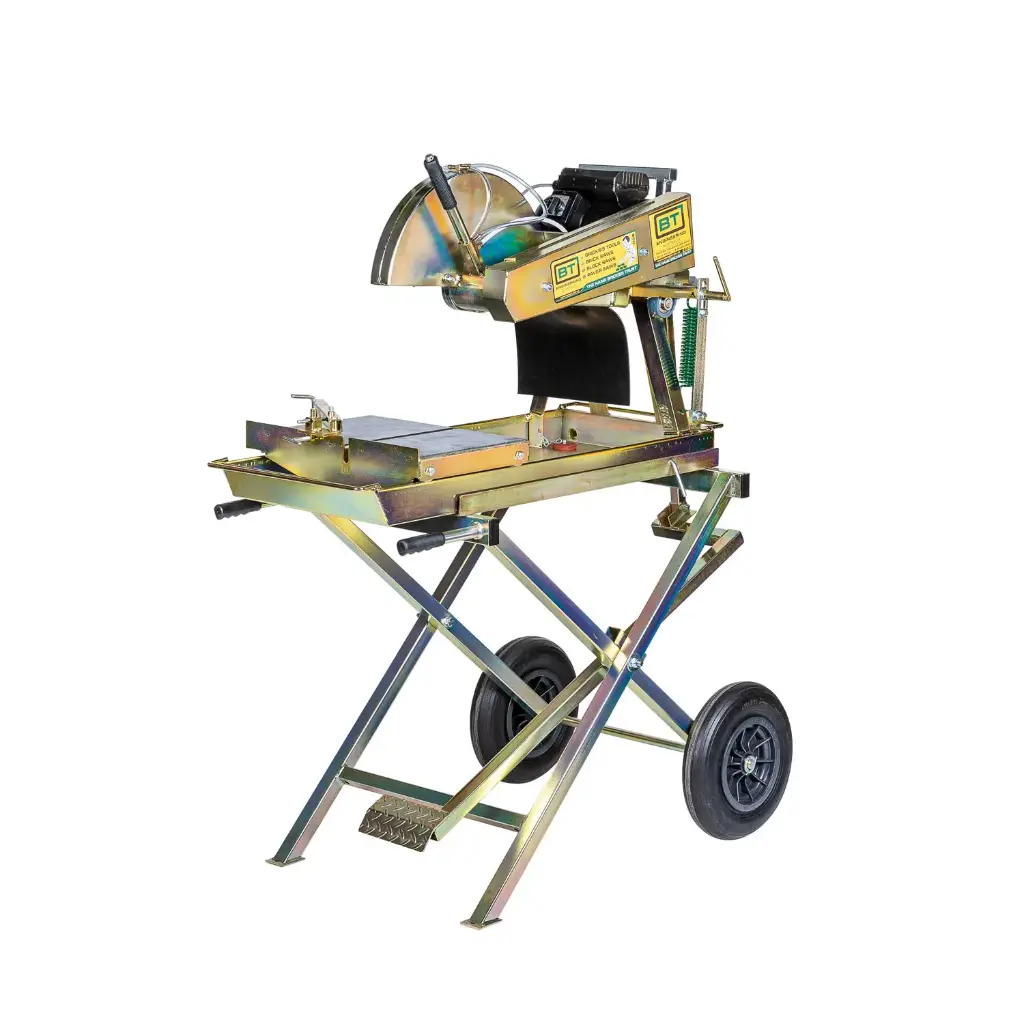

BT Electric Brick Saw 14" and 16"

The iconic BT Bricksaw has been upgraded. This newer model now fits either a 14″ or 16″ Diamond Blade.

With a 50-year history of supporting bricklayers, our products are designed to stand the test of time.

BT Engineering is your Quality Tools Partner

Now for the finer details…

• Engineered optimal dust suppression, with our custom-designed 3-way independent water button. On/Off, hands-free or constant flow water modes.

• Fitted rubber splash guard  reduces water spray and slurry build up

• Customed designed & durable carriage tray with removable mitre guide for precise cuts of any length or shape.

• Lightweight detachable base and stand with puncture proof tyres, ensures easy manoeuvrability onsite and convenient transport.

• Updated blade guard to fit both 14” & 16” blades. Hinged mechanism for continued user protection, effective water disbursement and easy blade changeover.

• 3 cutting options using a fixed position, pull down handle or foot pedal.

• Zinc electroplating ensures the BT Brick Saw repels dust and corrosion for many years of operation.

• Added mounts for belt driven water circulation pumps.

• Plus, a wide range of parts to keep your saw running.

 Motor Specifications:

• 1800 watt electric Fasco motor
• Voltage : 240 (50hz)
• Current draw ( Amps)
  • Max ( Start Up) 55.57
  • Minimum  7.97
  • Normal  8.86
• RPMs 2230

Blade & Cutting Specifications

• Blade size ( diameter )
  • Minimum 14″  (355mm)
  • Maximum 16″  (406mm)
• Blade bore diameter  25.4mm / 1″
• Depth of cut: 125mm (14″) to 145mm (16″)
• Length of cut: 500mm
• Clearance up to 200mm

Carriage Dimensions

• Length: 310mm
• Width: 440mm

Bricksaw Dimensions

Assembled

• • Length: 1180 mm
  • Width: 680 mm
  • Height: 1560 mm
  • Weight: 90kg

Packed for transportation

• • Length: 1200 mm
  • Width: 680 mm
  • Height: 800 mm
