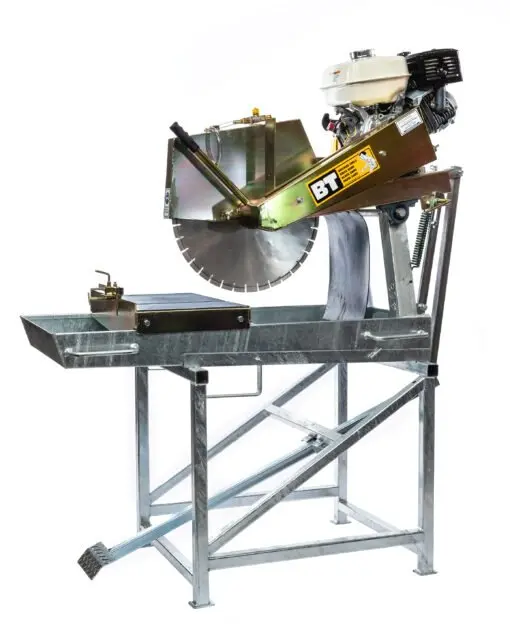

BT Petrol Block saw

BT Engineering have developed, engineered and manufactured the most rugged and hardworking 20″ Blocksaw in the market.

• Depth of cut: 200mm
• Length of cut: 540mm
• Blade not included.
• The 20″ diamond blade with 8″ cutting clearance allows you to breeze through concrete blocks and other masonry products in one clean cut.
• The 9hp Genuine Honda GX270 Engine provides the grunt you need in any location, even the most demanding and remote work sites.
• The enlarged sliding carriage provides a completely stable platform for large scale blocks, pavers or bricks to rest on while being cut.
• Eliminate dust with the adjustable water supply valve.
• The removable mitre guide allows you to consistently cut concrete blocks, pavers and bricks to any length or shape you require.
• The detachable base provides neat transportation options on any ute, truck or van.
• The galvanized stand and base combined with the zinc electroplated saw arm ensures the BT Block Saw repels rust and corrosion throughout many years of operation.

Motor Specifications:

• Custom designed 9hp GX270 Honda Motor
• Engine type 4-stroke, overhead valve, single cylinder with recoil start
• 3/4 keyed horizontal shaft
• Net power 6.3kW (8bhp) at 3600 rpm
• Continuous Rated power 5.1kW (6.8HP) at 3600 rpm
• 270cc Displacement
• Unleaded fuel with Fuel tank capacity 5.3 Liters
• Heavy duty air filtration
• Replacement cyclone filters available.

Blade & Cutting Specifications

• Blade size ( diameter ) 510mm / 20″
• Blade bore diameter  25.4mm / 1″
• Depth of cut: 200mm / 8″
• Length of cut: 540mm /21″

Carriage Dimensions

• Length: 360mm
• Width: 570mm

Blocksaw Dimensions

• Assembled
  • Length: 1450mm
  • Width: 700mm
  • Height: 1550mm
  • Weight: 150kg
• Packed for transportation
  • Length: 1450mm
  • Width: 700mm
  • Height: 1070mm
  • Weight: 150kg
